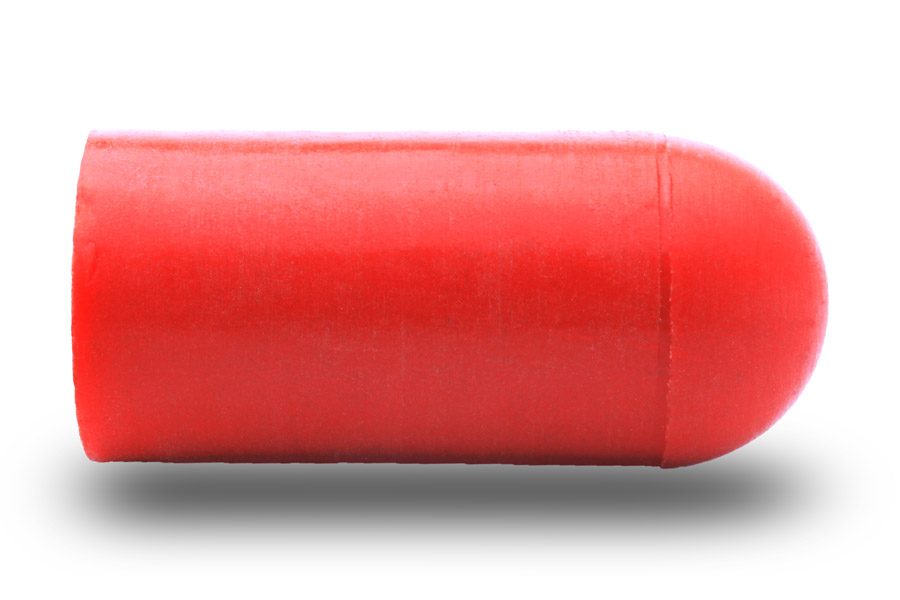

EC колпачки силиконовые до +315°C
EC колпачки силиконовые до +315°C предназначены для защиты шпилек, болтов, осей от нанесения покрытия при порошковом окрашивании, катафорезе и гальванообработке. Многократного применения. Выпускаются в разных цветах для удобства ориентации в размерах.
Экологическая дружелюбность
Этот продукт можно использовать
многократно
и с разными диаметрами
Чтобы узнать цену, сделать заказ или по иным вопросам свяжитесь с нами, заполнив форму
Каталог EC
Колпачки продаются в коробках. Каждая коробка может содержать от 100 до 1000 колпачков.

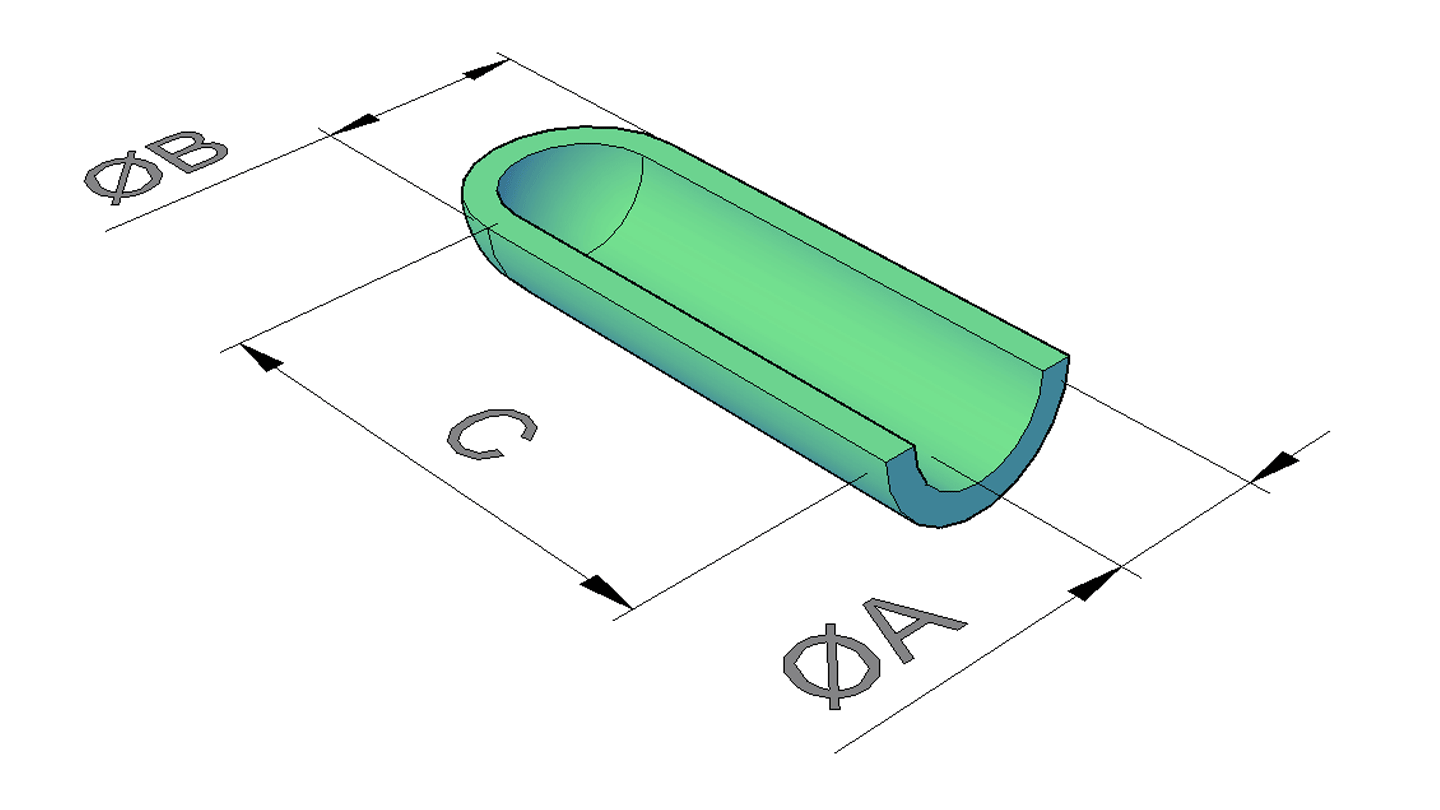

| Артикул | Резьба | ØA, мм | ØB, мм | C, мм | Упаковка, шт | |
|---|---|---|---|---|---|---|
| ЕС20-0500 | 0.51 | 3.56 | 12.70 | 1000 | ||
| ЕС35-0500 | 0.89 | 3.54 | 12.70 | 1000 | ||
| ЕС40-0500 | 1.02 | 4.06 | 12.70 | 1000 | ||
| ЕС40-0750 | 1.02 | 4.06 | 19.05 | 1000 | ||
| ЕС62-0500 | 1.57 | 4.62 | 12.70 | 1000 | ||
| ЕС62-0750 | 1.57 | 4.62 | 19.05 | 1000 | ||
| ЕС62-1000 | 1.57 | 4.62 | 25.40 | 1000 | ||
| EC70-1000 | M2 | 1.78 | 4.82 | 25.40 | 1000 | |
| EC80-0750 | 2.03 | 5.07 | 19.05 | 1000 | ||
| EC93-0500 | 2.36 | 5.40 | 12.70 | 1000 | ||
| EC93-0750 | M2,5 | 2.36 | 5.40 | 19.05 | 1000 | |
| EC93-1000 | M2,5 | 2.36 | 5.40 | 25.40 | 1000 | |
| EC100-0500 | M3 | 2.54 | 5.58 | 12.70 | 1000 | |
| EC100-0750 | M3 | 2.54 | 5.58 | 19.05 | 1000 | |
| EC100-1000 | M3 | 2.54 | 5.58 | 25.40 | 1000 | |
| EC100-1500 | M3 | 2.54 | 5.58 | 38.10 | 1000 | |
| EC109-0500 | 2.77 | 5.81 | 12.70 | 1000 | ||
| EC109-0750 | 2.77 | 5.81 | 19.05 | 1000 | ||
| EC109-1000 | 2.77 | 5.81 | 19.05 | 1000 | ||
| EC125-0500 | 3.18 | 6.22 | 12.70 | 1000 | ||
| EC125-0750 | 3.18 | 6.22 | 19.10 | 1000 | ||
| EC125-1000 | 3.18 | 6.22 | 25.40 | 1000 | ||
| EC125-1500 | 3.18 | 6.22 | 38.10 | 1000 | ||
| EC137-0500 | 3.48 | 6.52 | 12.70 | 1000 | ||
| EC137-1000 | 3.48 | 6.52 | 25.40 | 1000 | ||
| EC140-0500 | 3.56 | 6.60 | 12.70 | 1000 | ||
| EC140-1000 | 3.56 | 6.60 | 25.40 | 1000 | ||
| EC140-1500 | 3.56 | 6.60 | 25.40 | 1000 | ||
| EC148-0500 | M4 | 3.76 | 6.80 | 12.70 | 1000 | |
| EC148-0750 | M4 | 3.76 | 6.80 | 19.05 | 1000 | |
| EC148-1000 | M4 | 3.76 | 6.80 | 25.40 | 1000 | |
| EC148-1500 | M4 | 3.76 | 6.80 | 38.10 | 1000 | |
| EC156-0500 | 3.96 | 7.00 | 12.70 | 1000 | ||
| EC156-1000 | 3.96 | 7.00 | 25.40 | 1000 | ||
| EC156-1500 | 3.96 | 7.00 | 38.10 | 1000 | ||
| EC172-0500 | 4.37 | 7.41 | 12.70 | 1000 | ||
| EC172-1000 | 4.37 | 7.41 | 25.40 | 1000 | ||
| EC172-1500 | 4.37 | 7.41 | 38.10 | 1000 | ||
| EC180-1000 | 4.57 | 7.61 | 25.40 | 1000 | ||
| EC187-0500 | M5 | 4.75 | 7.79 | 12.70 | 1000 | |
| EC187-0750 | M5 | 4.75 | 7.79 | 19.05 | 1000 | |
| EC187-1000 | M5 | 4.75 | 7.79 | 25.40 | 1000 | |
| EC187-1500 | M5 | 4.75 | 7.79 | 38.10 | 1000 | |
| EC197-0500 | 5.00 | 8.04 | 12.70 | 500 | ||
| EC197-1000 | 5.00 | 8.04 | 12.70 | 500 | ||
| EC218-1000 | 5.54 | 8.58 | 25.40 | 500 | ||
| EC223-0500 | M6 | 5.66 | 8.70 | 12.70 | 500 | |
| EC223-0750 | M6 | 5.66 | 8.70 | 19.10 | 500 | |
| EC223-1000 | M6 | 5.66 | 8.70 | 25.40 | 500 | |
| EC223-1500 | M6 | 5.66 | 8.70 | 38.10 | 500 | |
| EC223-2165 | M6 | 5.66 | 8.70 | 55.00 | 500 | |
| EC234-0500 | 5.94 | 8.98 | 12.70 | 500 | ||
| EC234-0750 | 5.94 | 8.98 | 19.10 | 500 | ||
| EC234-1000 | 5.94 | 8.98 | 25.40 | 500 | ||
| EC234-1250 | 5.94 | 8.98 | 32.00 | 500 | ||
| EC234-1500 | 5.94 | 8.98 | 38.10 | 500 | ||
| EC250-0500 | 6.35 | 9.39 | 12.70 | 500 | ||
| EC250-1000 | 6.35 | 9.39 | 25.40 | 500 | ||
| EC250-1500 | 6.35 | 9.39 | 38.10 | 500 | ||
| EC260-0500 | 6.60 | 9.64 | 12.70 | 500 | ||
| EC260-1000 | 6.60 | 9.64 | 25.40 | 500 | ||
| EC281-0500 | 7.14 | 10.18 | 12.70 | 500 | ||
| EC281-0750 | 7.14 | 10.18 | 19.10 | 500 | ||
| EC281-1000 | 7.14 | 10.18 | 25.40 | 500 | ||
| EC281-2000 | 7.14 | 10.18 | 50.80 | 500 | ||
| EC295-0500 | M8 | 7.49 | 10.53 | 12.70 | 500 | |
| EC295-0750 | M8 | 7.49 | 10.53 | 19.05 | 500 | |
| EC295-1000 | M8 | 7.49 | 10.53 | 25.40 | 500 | |
| EC295-1500 | M8 | 7.49 | 10.53 | 38.10 | 500 | |
| EC295-2350 | M8 | 7.49 | 10.53 | 59.00 | 500 | |
| EC303-1000 | 7.70 | 10.96 | 25.40 | 500 | ||
| EC312-0500 | 7.92 | 10.96 | 12.70 | 500 | ||
| EC312-1000 | 7.92 | 10.96 | 25.40 | 500 | ||
| EC312-1500 | 7.92 | 10.96 | 38.10 | 500 | ||
| EC340-1000 | 8.64 | 11.68 | 25.40 | 500 | ||
| EC340-1500 | 8.64 | 11.68 | 38.10 | 500 | ||
| EC340-2000 | 8.64 | 11.68 | 50.80 | 500 | ||
| EC355-1000 | 9.02 | 12.06 | 25.40 | 500 | ||
| EC355-1500 | 9.02 | 12.06 | 38.10 | 500 | ||
| EC366-1000 | 9.30 | 12.06 | 25.40 | 500 | ||
| EC366-1500 | 9.30 | 12.06 | 38.10 | 500 | ||
| EC375-0500 | M10 | 9.52 | 12.56 | 12.70 | 500 | |
| EC375-0750 | M10 | 9.52 | 12.56 | 19.05 | 500 | |
| EC375-1000 | M10 | 9.52 | 12.56 | 25.40 | 500 | |
| EC375-1500 | M10 | 9.52 | 12.56 | 38.10 | 500 | |
| EC375-1969 | M10 | 9.52 | 12.56 | 50.00 | 500 | |
| EC406-1000 | 10.31 | 13.35 | 25.40 | 500 | ||
| EC406-1500 | 10.31 | 13.35 | 38.10 | 500 | ||
| EC437-1000 | 11.10 | 14.14 | 25.40 | 500 | ||
| EC437-2000 | 11.10 | 14.14 | 50.80 | 500 | ||
| EC456-0500 | M12 | 11.58 | 14.62 | 12.70 | 500 | |
| EC456-0750 | M12 | 11.58 | 14.62 | 19.10 | 500 | |
| EC456-1000 | M12 | 11.58 | 14.62 | 25.40 | 500 | |
| EC456-1500 | M12 | 11.58 | 14.62 | 38.10 | 500 | |
| EC456-1969 | M12 | 11.58 | 14.62 | 50.00 | 500 | |
| EC468-1000 | 11.89 | 14.93 | 25.40 | 500 | ||
| EC468-1500 | 11.89 | 14.93 | 38.10 | 500 | ||
| EC475-4000 | 12.07 | 15.11 | 101.60 | 500 | ||
| EC480-1000 | 12.19 | 15.23 | 25.40 | 500 | ||
| EC480-1500 | 12.19 | 15.23 | 38.10 | 500 | ||
| EC500-1500 | 12.70 | 15.74 | 38.10 | 500 | ||
| EC535-0750 | M14 | 13.59 | 16.63 | 19.10 | 250 | |
| EC535-1000 | M14 | 13.59 | 16.63 | 25.40 | 250 | |
| EC535-1500 | M14 | 13.59 | 16.63 | 38.10 | 250 | |
| EC535-3000 | M14 | 13.59 | 16.63 | 76.20 | 250 | |
| EC562-1100 | 14.27 | 17.31 | 28.00 | 250 | ||
| EC562-1500 | 14.27 | 17.31 | 38.10 | 250 | ||
| EC600-1500 | M16 | 15.24 | 18.28 | 38.10 | 250 | |
| EC625-1125 | 15.88 | 18.92 | 28.58 | 250 | ||
| EC625-1500 | 15.88 | 18.92 | 38.10 | 250 | ||
| EC625-2500 | 15.88 | 18.92 | 63.50 | 250 | ||
| EC687-1000 | 17.45 | 20.49 | 25.40 | 250 | ||
| EC687-1500 | М18 | 17.45 | 20.49 | 38.10 | 250 | |
| EC687-2500 | 17.45 | 20.49 | 63.50 | 250 | ||
| EC730-1500 | 18.54 | 21.58 | 38.10 | 250 | ||
| EC750-1500 | M20 | 19.05 | 22.09 | 38.10 | 250 | |
| EC750-2000 | M20 | 19.05 | 22.09 | 50.80 | 250 | |
| EC750-3500 | M20 | 19.05 | 22.09 | 88.90 | 250 | |
| EC780-1500 | 19.81 | 22.85 | 38.10 | 250 | ||
| EC812-1000 | G1/2 | 20.62 | 23.66 | 25.40 | 250 | |
| EC812-1500 | G1/2 | 20.62 | 23.66 | 38.10 | 250 | |
| EC845-2844 | 21.46 | 25.26 | 72.20 | 250 | ||
| EC875-1000 | 22.22 | 25.26 | 25.40 | 250 | ||
| EC875-1500 | 22.22 | 25.26 | 38.10 | 250 | ||
| EC937-1500 | М24 | 23.80 | 26.84 | 38.10 | 250 | |
| EC970-1500 | 24.64 | 27.68 | 38.10 | 250 | ||
| EC970-4000 | 24.64 | 27.68 | 101.60 | 250 | ||
| EC1000-820 | G3/4 | 25.40 | 28.44 | 20.83 | 250 | |
| EC1000-1500 | G3/4 | 25.40 | 28.44 | 38.10 | 250 | |
| EC1000-2000 | G3/4 | 25.40 | 28.44 | 50.80 | 250 | |
| EC1062-1500 | M27 | 26.97 | 30.01 | 38.10 | 100 | |
| EC1062-2000 | M27 | 26.97 | 30.01 | 50.80 | 100 | |
| EC1125-1500 | М30 | 28.58 | 31.62 | 38.10 | 100 | |
| EC1187-1500 | 30.15 | 33.19 | 38.10 | 100 | ||
| EC1250-1500 | G1/М33 | 31.75 | 34.79 | 38.10 | 100 | |
| EC1350-1500 | 34.29 | 37.33 | 38.10 | 100 | ||
| EC1350-1750 | 34.29 | 37.33 | 44.50 | 100 | ||
| EC1380-1000 | М36 | 35.05 | 38.09 | 25.40 | 100 | |
| EC1380-1500 | М36 | 35.05 | 38.09 | 38.10 | 100 | |
| EC1500-1000 | М39 | 38.10 | 41.14 | 25.40 | 100 | |
| EC1500-1500 | М39 | 38.10 | 41.14 | 38.10 | 100 | |
| EC1500-1750 | М39 | 38.10 | 41.14 | 44.45 | 100 | |
| EC1625-2000 | М42 | 41.28 | 44.32 | 50.80 | 100 | |
| EC1750-1500 | М45 | 44.45 | 47.49 | 38.10 | 100 | |
| EC1750-2000 | М45 | 44.45 | 47.49 | 50.80 | 100 | |
| EC1875-1500 | М48 | 47.62 | 50.66 | 38.10 | 100 | |
| EC1875-2000 | М48 | 47.62 | 50.66 | 50.80 | 100 | |
| EC2000-1500 | М52 | 50.80 | 53.84 | 38.10 | 100 | |
| EC2000-2000 | М52 | 50.80 | 53.84 | 50.80 | 100 | |
| EC2105-2000 | М56 | 53.47 | 56.51 | 50.80 | 100 | |
| EC2500-1500 | М64 | 63.50 | 66.55 | 38.10 | 100 | |
| EC2750-1500 | 69.85 | 72.90 | 38.10 | 100 | ||
| EC3500-1500 | 88.90 | 91.95 | 38.10 | 100 | ||
| EC3500-3000 | 88.90 | 91.95 | 76.20 | 100 | ||
| EC4000-1750 | 101.60 | 104.65 | 44.45 | 100 |
